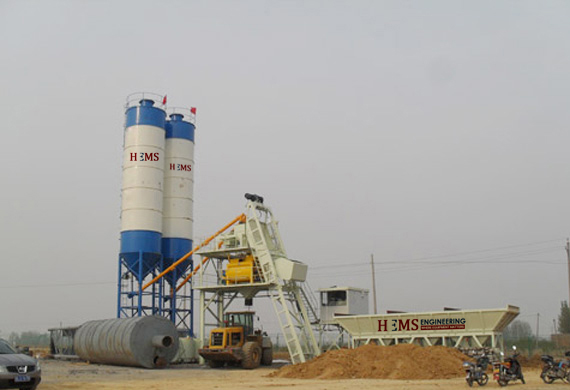

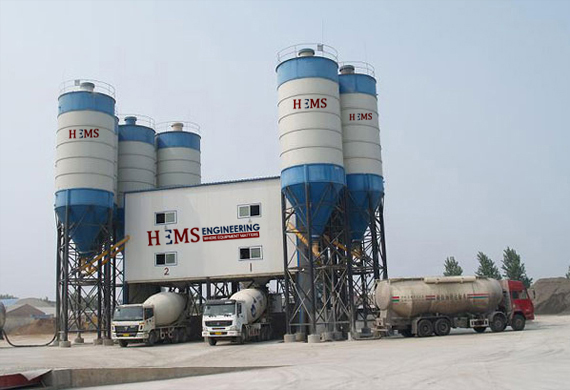

Wet concrete batching plant is a general plant to mix general materials such as plastic concrete, dry hard concrete and other mortars. It can be widely used in the establishment of commercial concrete plant production and big scale concrete plant. The wet batch concrete plant mainly includes weighing system, aggregate supply system, mixing system, control system, cement silo and other subsystems. The wet mix concrete batch plant can be divided into stationary concrete plant and mobile concrete plant. As the name suggests, mobile concrete plant is easier to move than the stationary concrete plant. It also can be divided into the hopper type concrete plant and belt type concrete plant according to the feeding methods. What’s more, both of them have various kinds of sizes so that you can choose products according to the different requirements of matters.
Wide Applications of Wet Concrete Batching Plant
Because of the convenience of wet mix concrete batch plant, it can be used to produce ready mix concrete as a commercial business. It will highly increase the productivity of concrete industry.
Wet concrete batching plant is suitable for the construction project such as roads, bridges, airports, tunnel and other municipaland non-municipal projects. The usage of concrete batching plant will makethe working time ahead of schedule compared with the old type construction.
The wet batch concrete plant is an ideal choice for the project construction not only the private usage but also commercial functions.
Type spectrum |
Bucket type |
|||
AJ-25 |
AJ-35 |
AJ-50 |
AJ-75 |
|
Theoretical Productivity (m³/h) |
25 |
35 |
50 |
75 |
Mixer Model (mixer discharging capacity) |
JS500 |
JS750 |
JS1000 |
JS1500 |
Motor Power (kW) |
18.5 |
30 |
2×18.5 |
2×30 |
Cycle Period (s) |
67 |
72 |
72 |
72 |
Nominal Capacity of Mixer (L) |
800 |
1200 |
1600 |
2400 |
Max.aggregate Size (mm) |
Φ60 |
Φ60 |
Φ60 |
Φ80 |
Aggregate Silo Capacity (m³) |
3×3 |
3×5 |
3×8 |
3×12 |
Category of Aggregate (Optional) |
3 |
3 |
3 |
3 |
Powder Lot Bin Capacity (t) |
1×50 |
1×50 |
1×100 |
2×100 |
Material Discharging Height (m) |
3.8 |
4.1 |
4.1 |
4.1 |
Accuracy of Aggregate (kg) |
（300~1500）±2% |
（300~1500）±2% |
（600~3000）±2% |
(1000~3000)±2% |
Accuracy of Cement (kg) |
（100~300）±1% |
（100~300）±1% |
（250~900）±1% |
（300~1800）±1% |
（60~150）±1% |
（60~150）±1% |
（80~300）±1% |
（200~800）±1% |
|
Accuracy of Water (kg) |
||||
/ |
（8~20） |
（8~20） |
（15~80） |
|
Accuracy of Addtive (kg) |
±1% |
±1% |
±1% |
|
| Srandard Reference Weight (Ton) |
≈15 |
≈18 |
≈23 |
≈30 |
Installed Capacity (kW) |
≈65 |
≈75 |
≈100 |
≈140 |
Electricity Standard(Optional) |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
