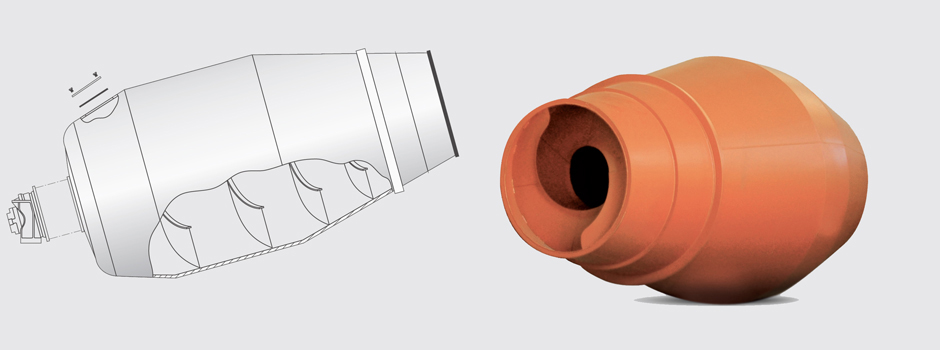

For this reason, the materials used to make our concrete mixer drums differ depending on the different types of equipment and their specific use:
MATERIAL S355 JR (former Fe510B) used for drum models mounted on RY concrete mixers.
• Rounded bottom: 7 mm thick;
• Bottom cone, cylindrical band, intermediate cones: 5 mm thick;
• Outlet cone and outlet: 4 mm thic
MATERIAL 30MNB5 used for drum models mounted on sl concrete mixer types (outside).
• Rounded bottom: 7 mm thick;
• Bottom cone, cylindrical band, intermediate cone, discharge cone: 4 mm thick;
• Outlet cone and outlet: 3 mm thick.
MATERIAL S900 for drum models mounted on SLX (extra light and hard) concrete mixer types.
• Rounded bottom: 7 mm thick;
• Bottom cone, cylindrical band, intermediate cone, discharge cone: 3 mm thick;
• Outlet cone and outlet: 3 mm thick.
MATERIAL S355 JR (former Fe510B) used for drum models mounted on HD (heavy duty) concrete mixer types for non EEC markets.
• Rounded bottom: 7 mm thick;
• Bottom cone, cylindrical band, intermediate cones: 5 mm thick;
• Outlet cone and outlet: 4 mm thick.
MATERIAL S900.
• Rounded bottom: 7 mm thick;
• Bottom cone, cylindrical band, intermediate cones: 3 mm thick;
• Outlet cone and outlet: 3 mm thick.
